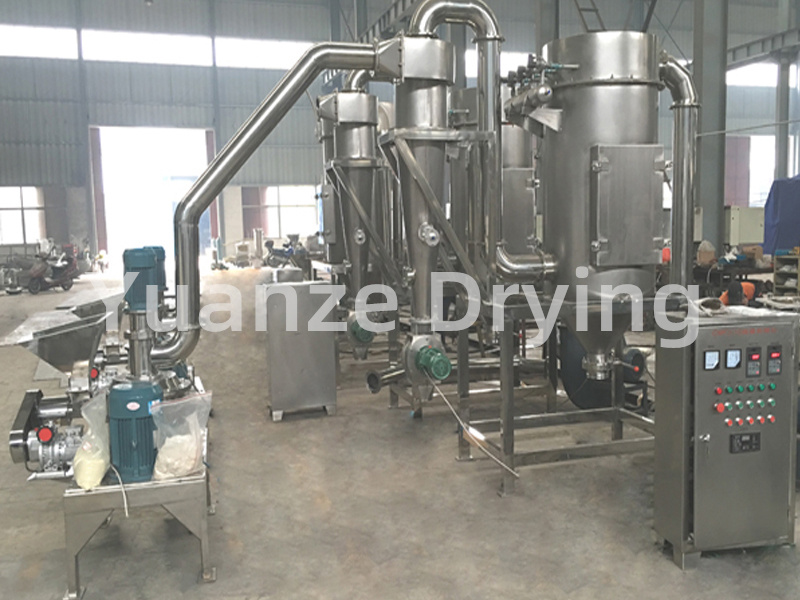

WFJ series ultrafine crusher
WFJ series ultrafine crusher
Description
This series of micro crushers consists of three parts: the main engine, auxiliary engine, and electrical control. It is compact in design, has a reasonable structure, and is equipped with air selection, no screen, and no mesh. The machine is equipped with a grading mechanism, which can complete crushing and grading in one go. Negative pressure conveying allows the heat generated in the chamber during the crushing operation to be continuously discharged, making it also suitable for the crushing of heat sensitive materials. This machine has a wide range of applications, with continuous production processes and adjustable discharge particle size; Can handle the crushing and grading of various materials such as chemicals, food, pharmaceuticals, cosmetics, dyes, resins, shells, etc.
| model | WFJ-15 | WFJ-18 | WFJ-36 |
| Production capacity (kg/h) | 10-200 | 20-450 | 60-1000 |
| Feed particle size (mm) | <10 | <12 | <15 |
| Discharge particle size (mesh) | 80-320 | 80-450 | 80-450 |
| Total power (kW) | 13.5 | 17.5 | 38 |
| Main speed (r/min) | 4500 | 4480 | 4000 |
| External dimensions (length × wide × Height (mm) | 4200×1200×2800 | 4700×1250×2900 | 9000×1500×3800 |
