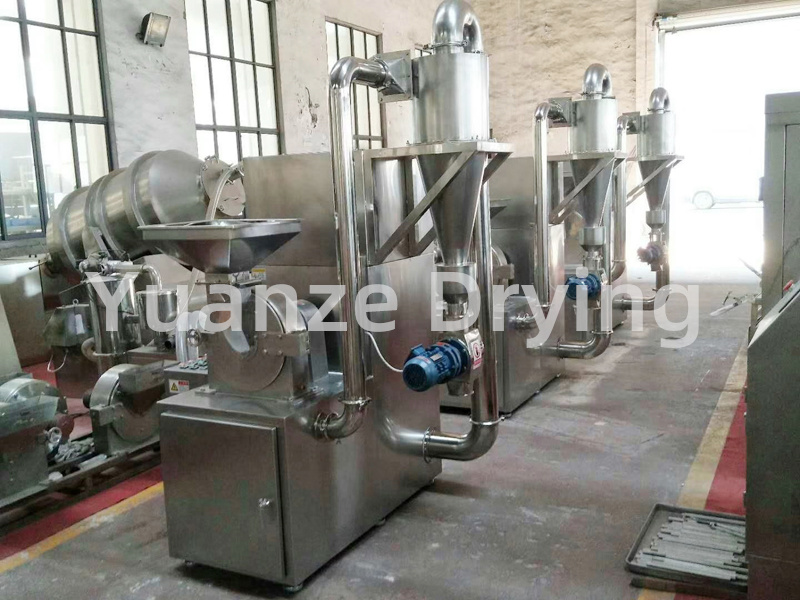

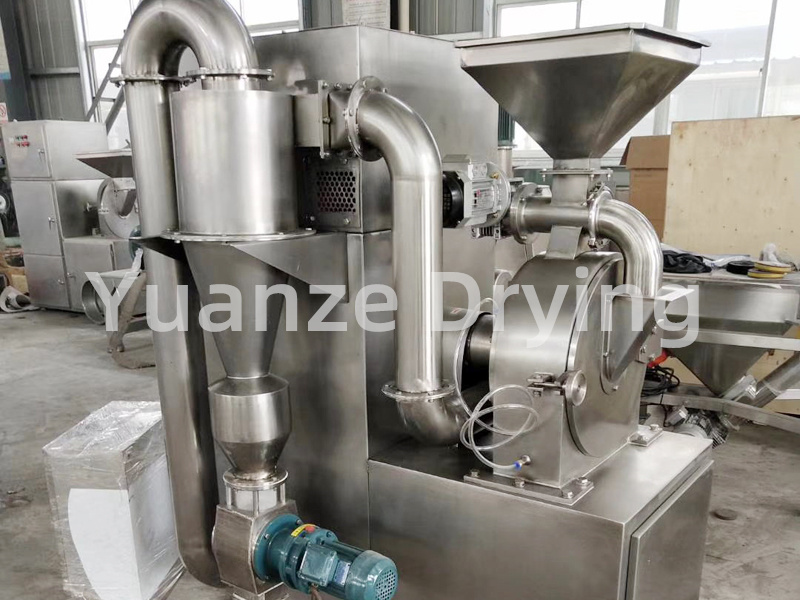

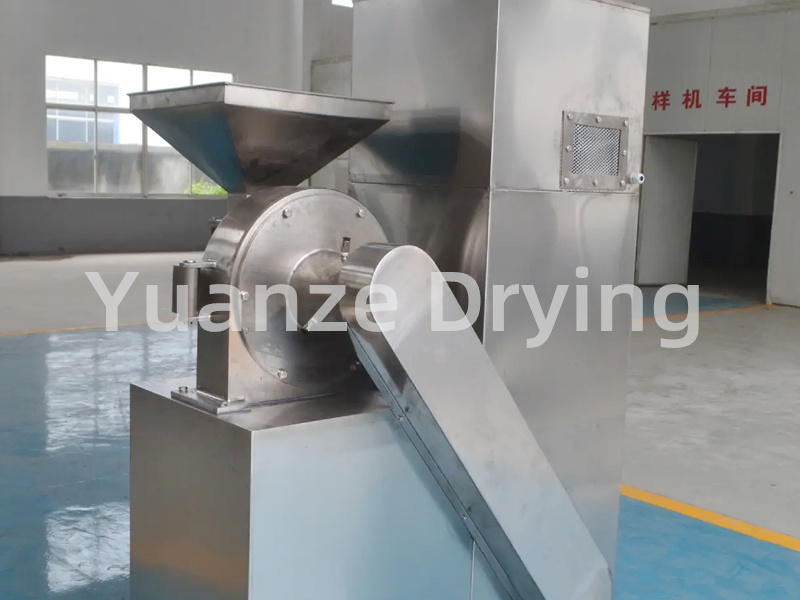

30B series universal crusher
30B series universal crusher
This crushing unit consists of a crusher, an ESC material collection box, and an ESC vacuum cleaner. Solve the problem of dust flying during the crushing process of materials.The working principle of this machine is that the material enters the crushing chamber and is crushed by the impact, shear, friction, and mutual impact between the high-speed rotating movable and fixed toothed discs. After being screened by the screen, it becomes the required powder.
Description
Structural principles and functions

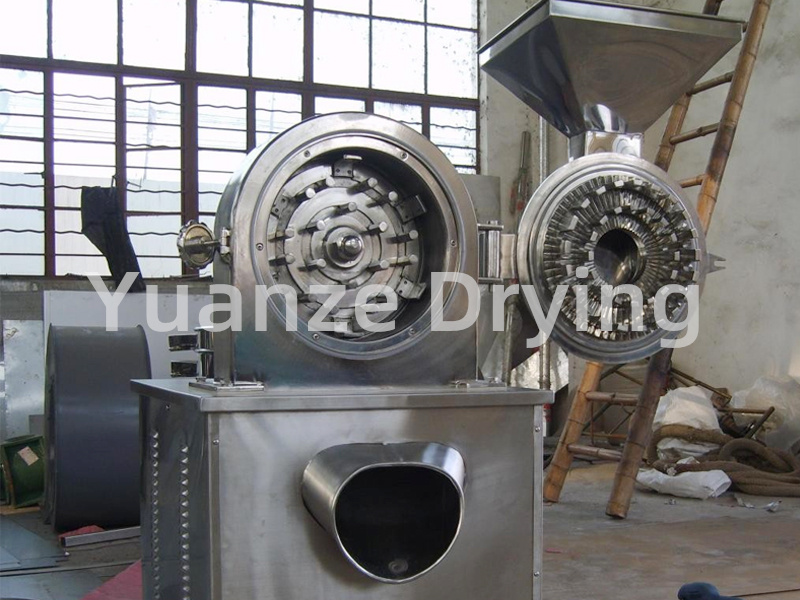

This crushing unit consists of a crusher, an ESC material collection box, and an ESC vacuum cleaner. Solve the problem of dust flying during the crushing process of materials.The working principle of this machine is that the material enters the crushing chamber and is crushed by the impact, shear, friction, and mutual impact between the high-speed rotating movable and fixed toothed discs. After being screened by the screen, it becomes the required powder.
The crusher, material collection box, and vacuum cleaner of this crushing unit are all made of stainless steel material. Meet the requirements of GMP for drug production.
Technical Parameter
| Model | 20B-C | 30B-C | 40B-C | 60B-C |
| Production capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| Spindle speed (r. p.m.) | 4500 | 3800 | 3400 | 2800 |
| Feed particle size (mm) | 6 | 10 | 12 | 15 |
| Finished product fineness (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Motor power (kW) | 4 | 5.5 | 11 | 15 |
| Vacuum cleaner (kw) | 1.5 | 1.5 | 1.5 | 2.2 |
| External dimensions (length x width x height) (mm) | 1100x600x1650 | 1200x650x1650 | 1350x700x1700 | 1550x1000x1750 |
