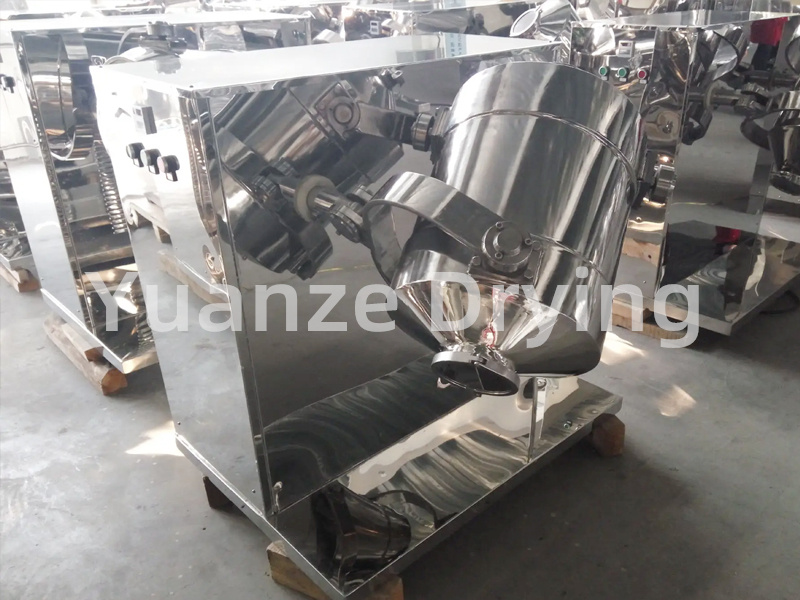

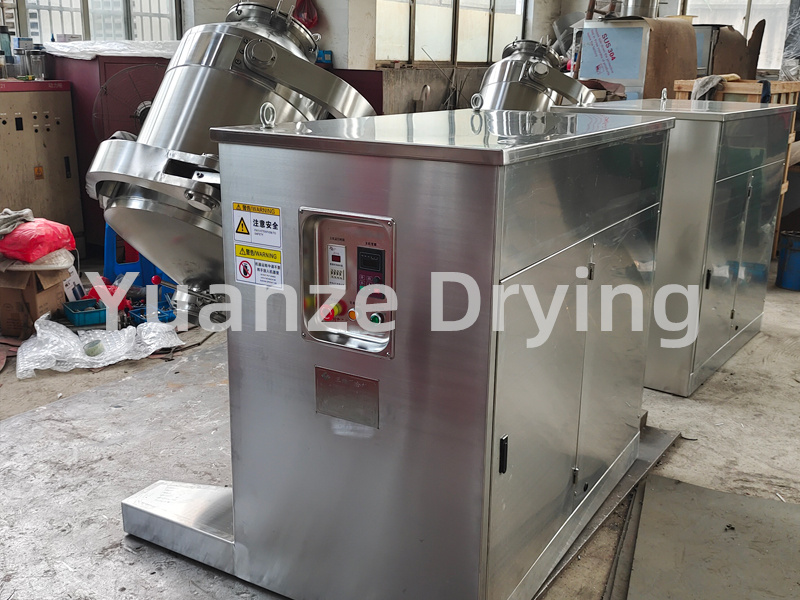

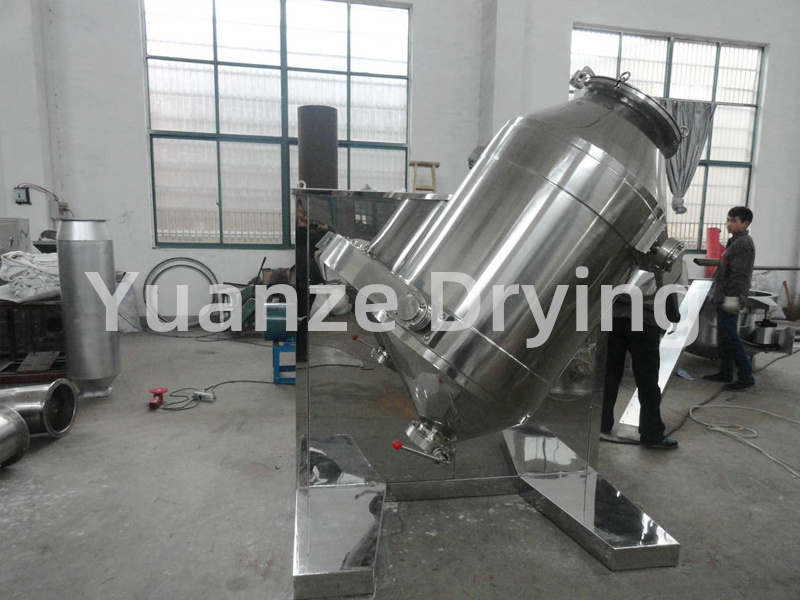

SYH series 3D motion mixer
SYH series 3D motion mixer
Description
Due to the multi-directional movement of the mixing barrel, there are multiple cross mixing points for the materials inside the barrel, resulting in high mixing efficiency and a uniformity of over 99.9%. The large loading coefficient can reach 0.9 (compared to 0.4-0.6 for ordinary mixers), short mixing time, and high efficiency.The mixing barrel of this machine has a unique design, with the inner wall of the barrel finely polished, no dead corners, no material pollution, convenient discharge, easy cleaning, and simple operation.
During operation, due to the multi-directional operation of the mixing barrel, various materials accelerate their flow and diffusion during the mixing process, while avoiding the phenomenon of material density segregation and accumulation caused by centrifugal force in general mixers. The mixing has no dead corners and can effectively ensure the excellent quality of the mixed materials.
Structure: The machine consists of a base, transmission system, electrical control system, multi-directional motion mechanism, mixing cylinder and other components. The mixing cylinder in direct contact with the material is made of high-quality stainless steel material, and both the inner and outer walls of the barrel are mirror polished.
model | SYH-5 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1500 | |
Mixing bucket volume (L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 | |
Large loading capacity (L) | 4 | 80 | 150 | 300 | 450 | 600 | 750 | 1200 | |
Large loading weight (kg) | 5 | 80 | 150 | 200 | 300 | 400 | 500 | 750 | |
Spindle speed (r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 | 10 | |
Motor power (kW) | 0.37 | 1.5 | 3 | 4 | 5.5 | 7.2 | 11 | 11 | |
External dimensions (mm) | L | 600 | 1200 | 1300 | 1500 | 1800 | 1900 | 1950 | 2600 |
W | 1000 | 1800 | 1600 | 2200 | 2500 | 2400 | 2500 | 2500 | |
H | 1000 | 1500 | 1500 | 1500 | 1650 | 2100 | 2400 | 2350 | |
Weight (kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 | 2500 |
