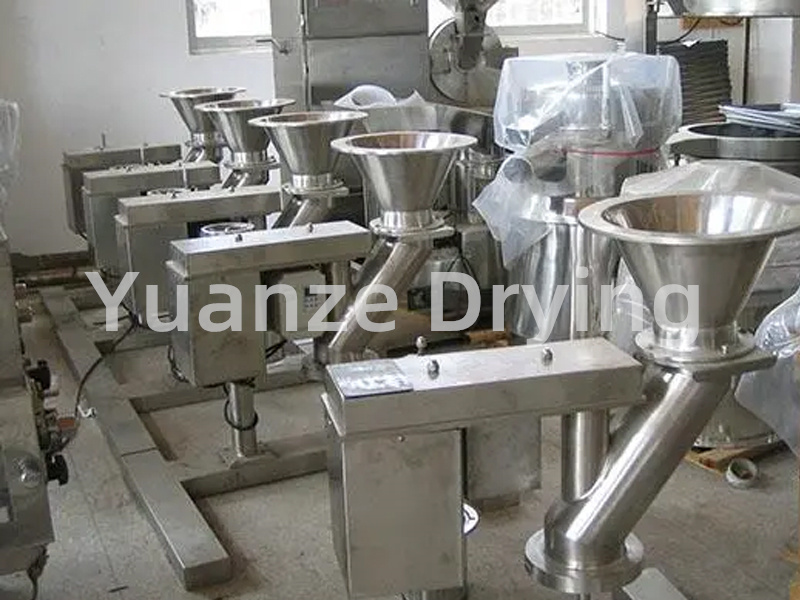

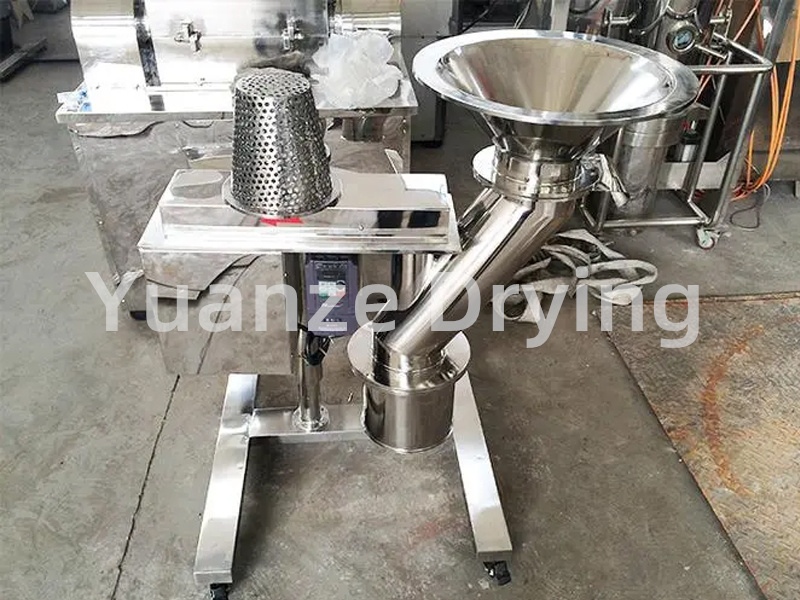

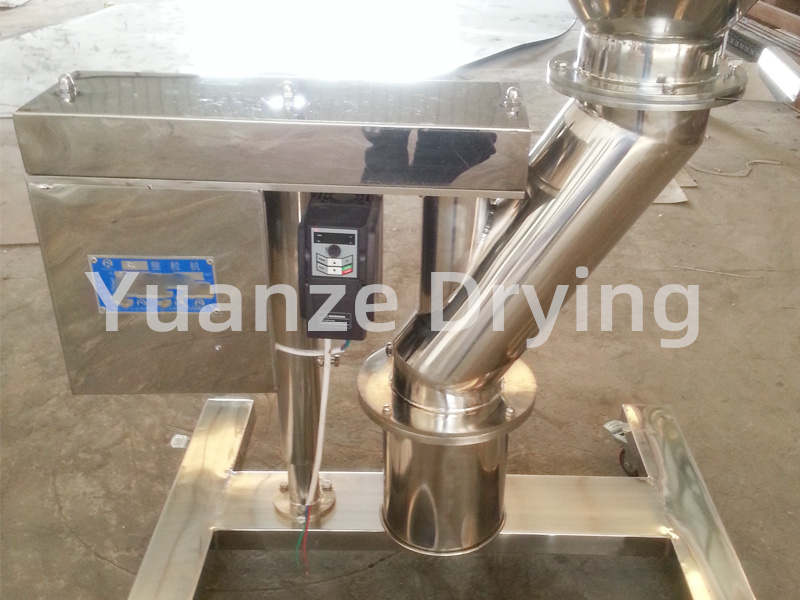

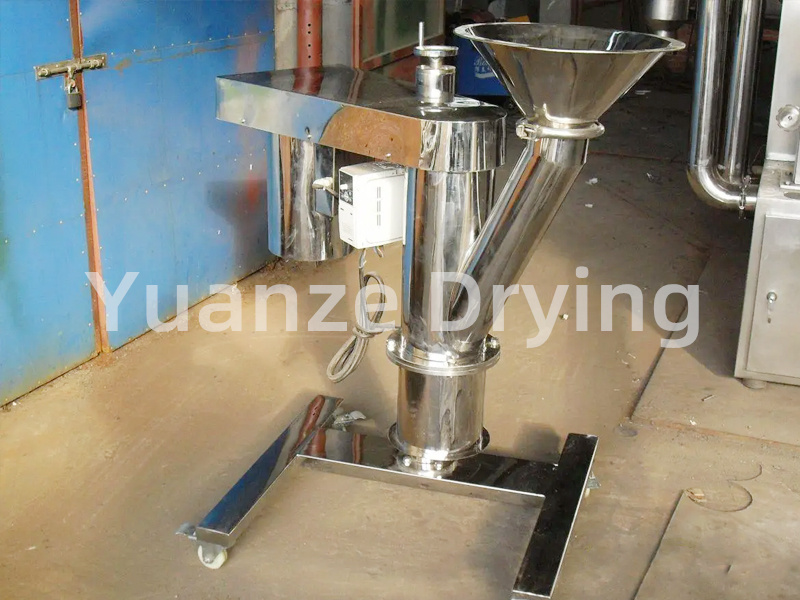

KZL series fast granulator
KZL series fast granulator
Description
During work, there is less heat generation and less dust.
The stator screen is made of stainless steel plates and is not easily damaged.
The gap between the crushing knife and the sieve is adjustable.
Can handle sticky, tree like, heat sensitive, and moist materials.
This machine is suitable for crushing and sorting particles in industries such as traditional Chinese and Western medicine, food, chemical pigments, and feed.
The particle shapes and specifications obtained through various granulation processes and equipment vary. After granulation, the particles are cut by a combination of high-speed rotating blades on this machine, and discharged through a mesh plate to obtain particles with similar shapes and specifications.
All parts of this machine are made of stainless steel, with a polished surface, making assembly, disassembly, and cleaning very convenient
| model | 100 | 180 | 300 |
| Stator diameter (mm) | 100 | 180 | 300 |
| Length of stator (mm) | 96 | 178 | 305 |
| Production capacity (kg/h) | 20-150 | 100-1500 | 500-2500 |
| Power (kW) | 0.75 | 1.5 | 5.5 |
| Speed (rpm) | 180-1400 | 175-1400 | 200-1400 |
