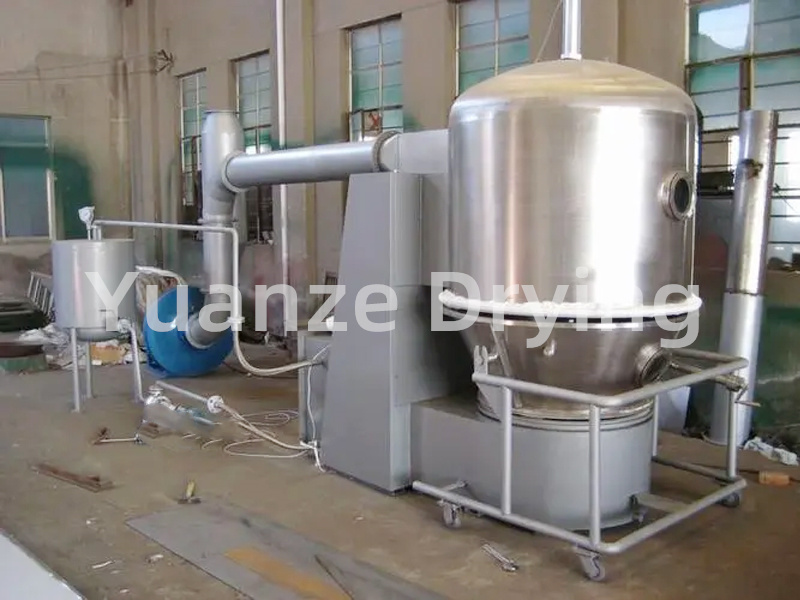

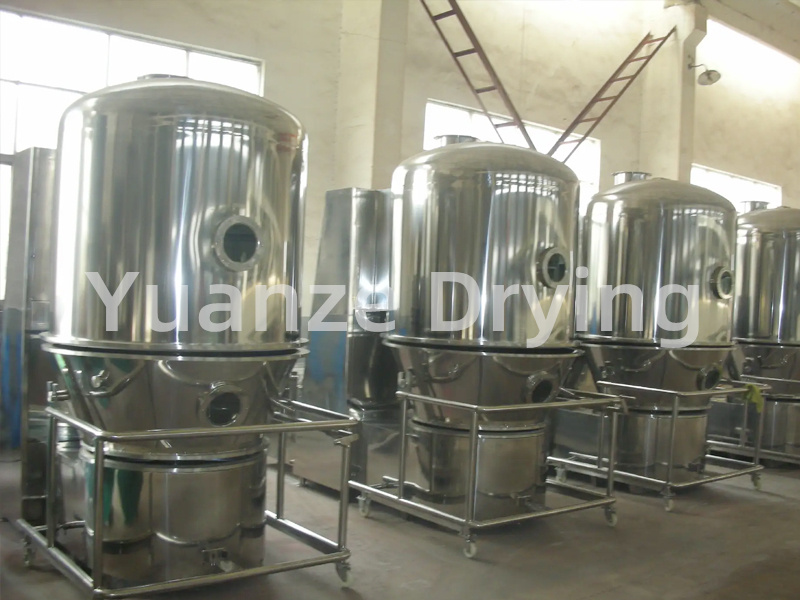

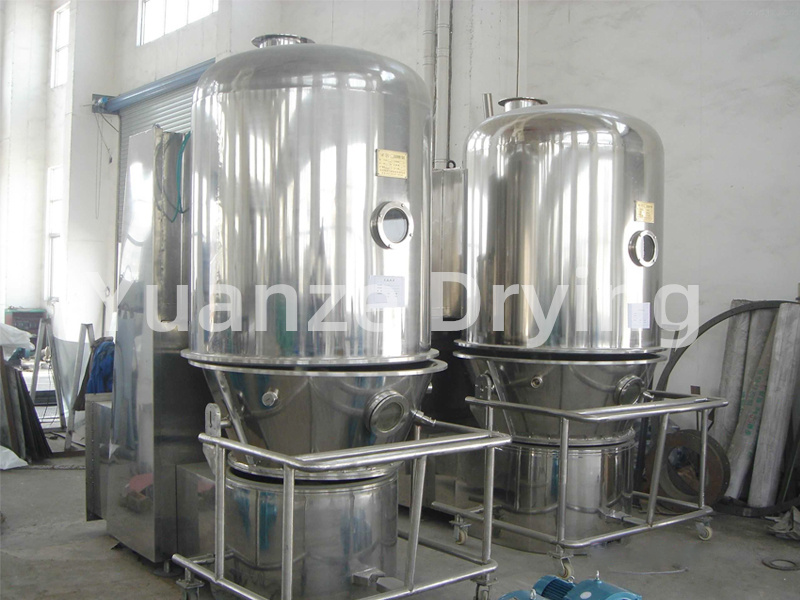

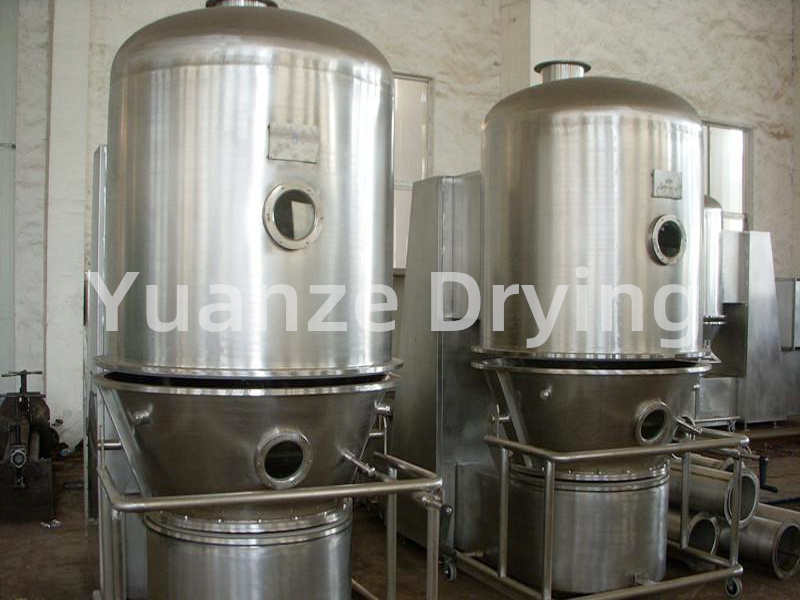

GFG series high-efficiency boiling dryer
GFG series high-efficiency boiling dryer
Description
After being heated and purified, the air is introduced from the bottom by an induced draft fan and passes through the hole plate of the hopper. In the studio, fluidization is formed through stirring and negative pressure, and the water evaporates rapidly before being carried away with the exhaust, resulting in rapid drying of the material.
Mechanical screw extrusion of particles, swinging particles, wet high-speed mixing of particles.
Drying of wet particles and powdered materials in fields such as medicine, food, feed, and chemical industry.
Large particles, small pieces, sticky block like materials.
Materials such as konjac and polyacrylamide that undergo volume changes during drying.
The fluidized bed has a circular structure to avoid dead corners.
The hopper is equipped with stirring to prevent the aggregation of damp materials and the formation of channel flow during drying.
The use of tipping material is convenient, fast, and thorough, and an automatic feeding and discharging system can also be designed according to requirements.
Closed negative pressure operation, gas is filtered. Easy to operate and clean, it is a device that meets GMP requirements.
The drying speed is fast, the temperature is uniform, and the drying time for each batch is generally 20-30 minutes.
project | unit | model | |||||||
Feeding | kg | 60 | 100 | 120 | 150 | 200 | 300 | 500 | |
fan | Air volume | m3/h | 2361 | 3488 | 4000 | 4901 | 6032 | 7800 | 10800 |
wind presssure | mmH2O | 594 | 533 | 533 | 679 | 787 | 950 | 950 | |
power | kw | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
stirring power | kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 1.5 | 2.2 | |
stirring speed | r.p.m | 11 | |||||||
Steam consumption | kg/h | 141 | 170 | 170 | 240 | 282 | 366 | 451 | |
TIME | min | 15-30( Depending on the material situation ) | |||||||
Host height | square | mm | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 |
circular | mm | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 |
