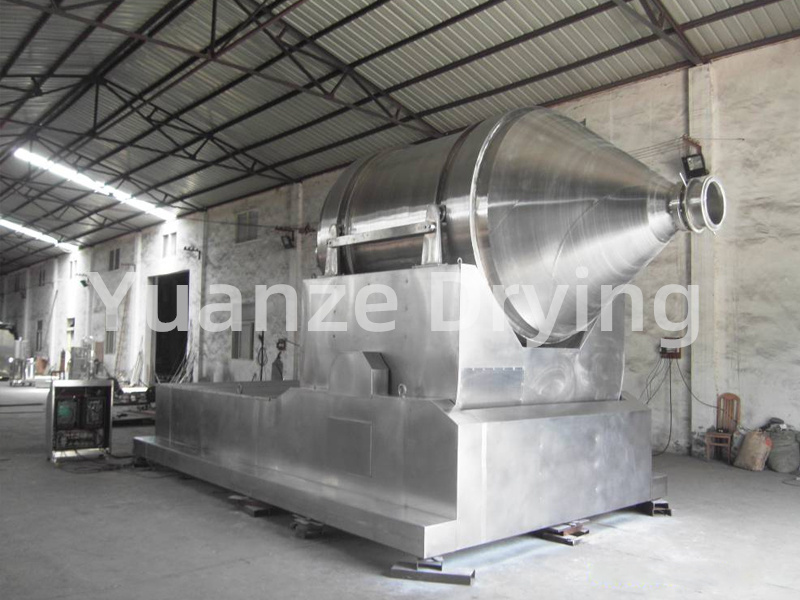

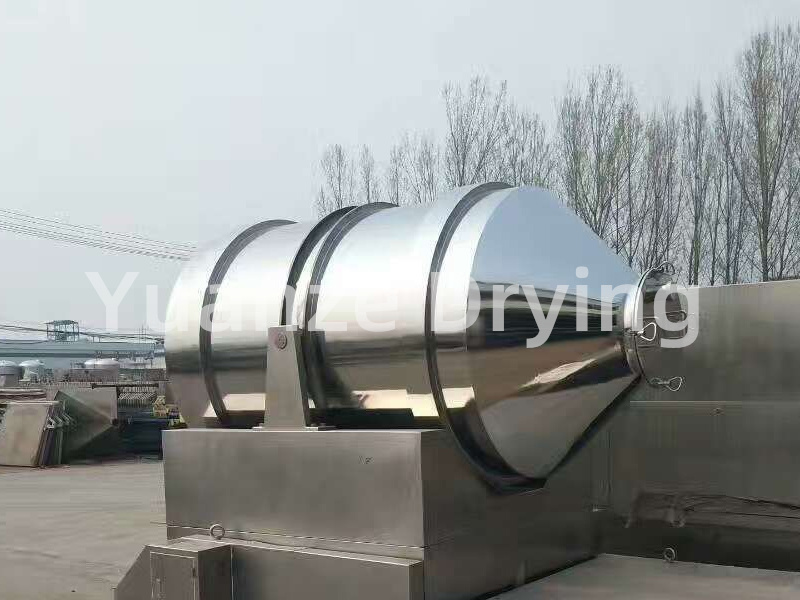

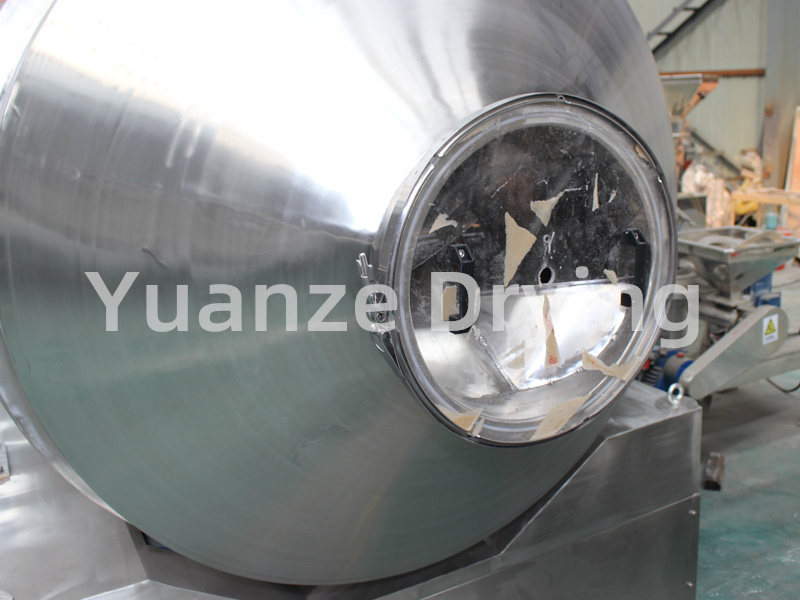

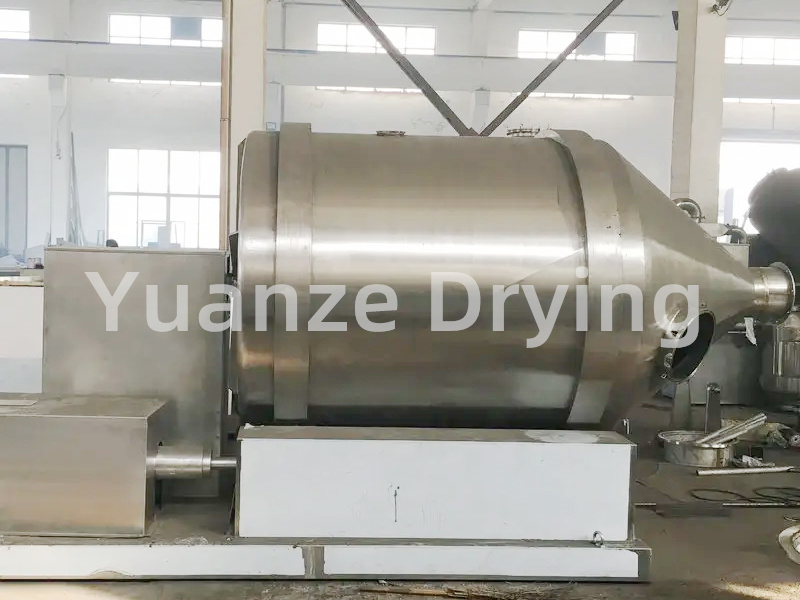

YYH series one-dimensional mixer
YYH series one-dimensional mixer
Description
This machine is widely used for mixing powder and granular materials in industries such as pharmaceuticals, chemicals, food, dyes, feed, fertilizers, pesticides, etc.
Simple structure and convenient operation.
During operation, the loading cylinder rotates around the central axis (referred to as "one-dimensional motion"), while the material inside the cylinder moves in three-dimensional motion. Therefore, the mixing accuracy of the material can be comparable to two-dimensional and three-dimensional motion mixers.
It is widely used in powder granulation and film, enteric coating, slow and controlled release coating of powder, particles, and pills, as well as coating of various materials such as masking, moisture-proof, waterproof, coloring, thermal insulation, and isolation.
| model | Barrel volume (L) | Large loading capacity (L) | Large loading capacity (Kg/batch) | Rotation speed (r/min) | Motor power (kW) | External dimension A × B × C × D (mm) | Total weight (Kg) |
| YYH-50 | 50 | 25 | 13 | 0-18 | 0.55 | 920×440×540×350 | 250 |
| YYH-150 | 150 | 75 | 37 | 0-16 | 0.75 | 1140×610×900×445 | 320 |
| YYH-300 | 300 | 150 | 75 | 0-14 | 1.1 | 1340×760×990×520 | 410 |
| YYH-600 | 600 | 300 | 150 | 0-13 | 1.5 | 1615×960×1100×630 | 490 |
| YYH-800 | 800 | 400 | 200 | 0-12 | 2.2 | 1730×1070×1200×700 | 560 |
| YYH-1000 | 1000 | 500 | 250 | 0-12 | 2.2 | 1900×1120×1300×710 | 740 |
| YYH-1500 | 1500 | 750 | 375 | 0-12 | 3 | 2050×1300×1480×830 | 850 |
| YYH-2000 | 2000 | 1000 | 500 | 0-10 | 4 | 2280×1420×1620×910 | 1050 |
| YYH-3000 | 3000 | 1500 | 750 | 0-10 | 5.5 | 2505×1620×1830×1020 | 1380 |
| YYH-4000 | 4000 | 2000 | 1000 | 0-8 | 5.5 | 3000×1800×2200×1300 | 1650 |
| YYH-6000 | 6000 | 3000 | 1500 | 0-6 | 7.5 | 3400×2200×2500×1450 | 2300 |
| YYH-8000 | 8000 | 4000 | 2000 | 0-6 | 11 | 3677×2300×2850×1630 | 3500 |
| YYH-10000 | 10000 | 5000 | 2500 | 0-6 | 11 | 3800×2500×2950×1680 | 3800 |
| YYH-12000 | 12000 | 6000 | 3000 | 0-6 | 15 | 4600×2700×3050×1700 | 4500 |
| YYH-15000 | 15000 | 7500 | 3750 | 0-5 | 18.5 | 4730×2900×3100×1725 | 6000 |
| YYH-20000 | 20000 | 10000 | 5000 | 0-5 | 22 | 6000×3200×3500×1920 | 8000 |
