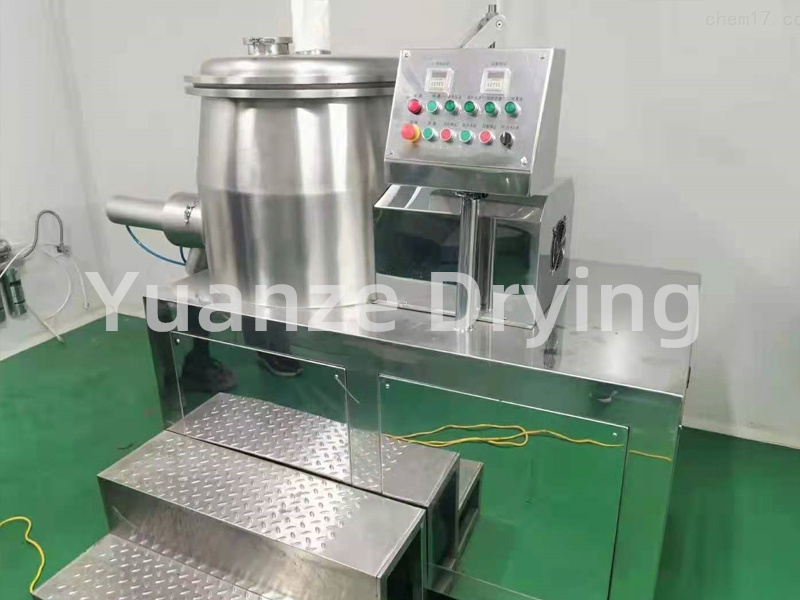

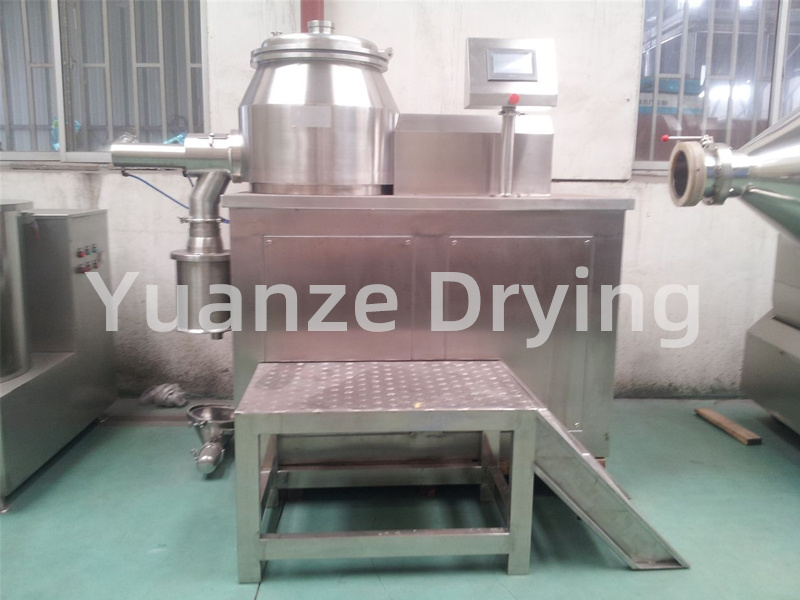

GHL series high-efficiency wet granulation machine
GHL series high-efficiency wet granulation machine
Description
The GHL high-speed mixing granulator is a high-efficiency equipment that mixes different powdered materials in one process and produces particles. It is widely used in industries such as pharmaceuticals, food, and chemicals. Equipment process technology: Features: ● This machine adopts a horizontal cylindrical or conical structure, and users can freely choose. The internal surface of the equipment has no dead corners, operates in a closed state, and meets the requirements of "GMP"
his machine adopts a horizontal cylindrical or conical structure, and users can freely choose.
The internal surface of the equipment has no dead corners and operates in a closed state, meeting the requirements of GMP.
Short granulation time, efficient and energy-saving.
The particles produced have a uniform texture and good fluidity, providing ideal granular raw materials for the tablet pressing process.
Reduce adhesive by 25% compared to traditional processes and shorten drying time.
Each batch is only dry mixed for 2 minutes, and granulation takes 1-4 minutes, which improves the efficiency by 4-5 times compared to traditional processes.
The entire operation has strict safety protection measures.
When there is a significant difference between the main drug and excipients, uniform combination can still be achieved without layering.
model | A | B | C×D | E | F |
10 | 270 | 750 | 1000×650 | 745 | 1350 |
50 | 320 | 950 | 1250×800 | 970 | 1650 |
150 | 420 | 1000 | 1350×800 | 1050 | 1750 |
200 | 500 | 1100 | 1650×940 | 1450 | 2050 |
250 | 500 | 1160 | 1650×940 | 1400 | 2260 |
300 | 550 | 1200 | 1700×1000 | 1400 | 2310 |
400 | 670 | 1300 | 1860×1100 | 1550 | 2410 |
600 | 750 | 1500 | 2000×1230 | 1750 | 2610 |
model | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
Volume L | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
kg/batch | 3 | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
r.p.m | 300/600 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
kw | 1.5/2.2 | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
r.p.m | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
kw | 0.85/1.1 | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
m3/min | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
